Edifier E1100 2+1 Speaker System


Author:
Published:

Introduction

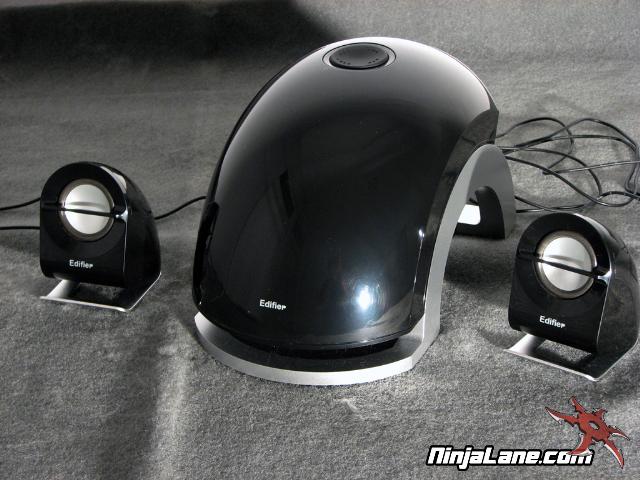

When it comes to building a computer there are a few things that you just cannot live without.  Monitor and keyboard are a given and while speakers are not required for any sort of computing you'd be hard pressed to find anyone without a set handy.  In this review we'll be looking at a completely new set of speakers from Edifier called the Edifier e1100.  These speakers come in a 2.1 sound configuration meaning that you have 2 satellite speakers and a single subwoofer.

Edifier has been building custom and high quality loudspeakers since 1996 and since then expanded to be one of the largest acoustical manufacturers in China with a total of 3 companies in China and North America.
From a technical perspective the Edifier e1100 features the following

Streamlined subwoofer housing
High quality plastic composite subwoofer with high gloss finish
Anti-resonant aluminum arch shape frame enhances subwoofer enclosure stiffness
Integrated power switch and volume control design with anti-slip rubber  finish for better handling
Convenient blue circular light surrounds the volume control knob
Separate power supply adapter to maximize the use of subwoofer enclosure volume for enhanced bass performance.

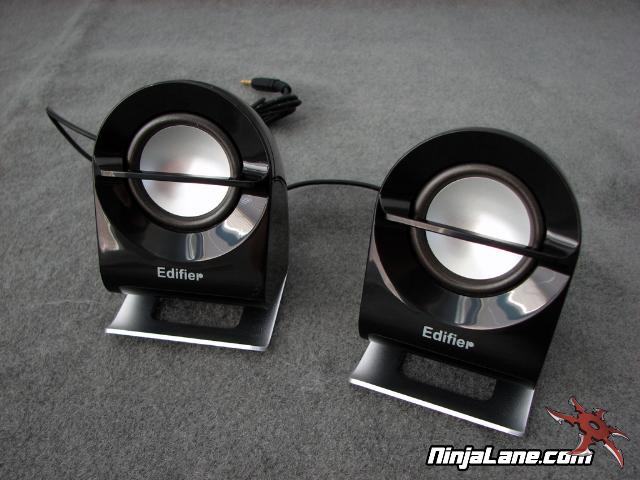

Striking satellite design with unique hi-tech drivers and aluminum frame construction.
Unique downward firing subwoofer design enhances bass by reflecting sound from the ground.

Specifications
Power Output: RMS 4.5W×2+12W(THD=10%)
Signal-to-Noise Rate (Amplifier): >=85dBA
Input Impedance:10K Ohm
Input Sensitive: 450mv
Frequency Response: 20-20K Hz
Bass driver unit: 4.5" long throw design with heat treated paper voice coil, magnetically shielded,  6 Ohm
Full range Driver: 2"  with heat treated paper voice coil,  magnetically shielded
Subwoofer 162 x 167 x 267mm ( WxHxD )
Satellites 68 x 105 x 103mm ( WxHxD )
Gross Weight: approximately 3.5kg
